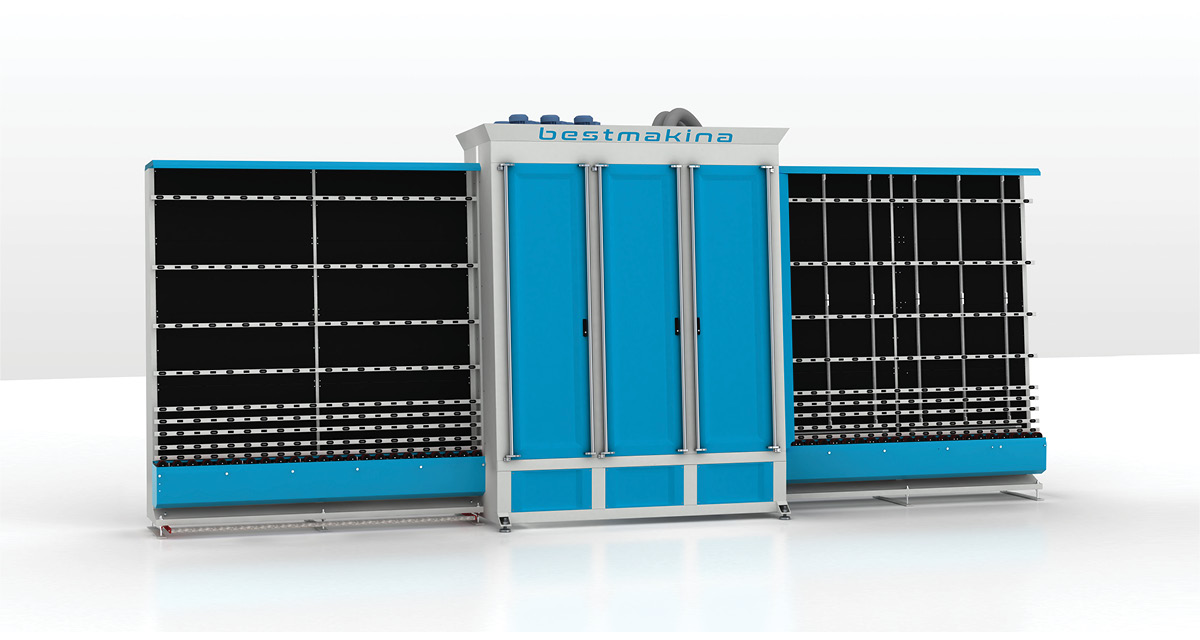

It is used for washing and drying glasses in IG manufacturing and glass processing.

• Welded rigid main body
• Special design for bearing system
• Rinsing with pure water
• Low energy consumption
• Lubrication free bearing system for brushes and conveyors
• 450 lt capacity stainless steel water tank
• Stainless water filters
• Ability of rinsing and drying without touching the glass
• Welded rigid body made of A304 stainles steel and HRP quality steel
• Staple type , vibration free brushes for ɛ =0.01 quality Low-E glasses
• Special design for conveyor wheels to move heavy glasses
• Brush shafts are balanced against vibration
• Easy cleanable water nozzles are positioned with a wide angle f or drag effect
• Wiper rubbers and brushes between sections in the washing unit
• Temperature controlled stainless water tank
• Water level control with magnetic safety sensors
• Automatic water support system with float control
• Stainless water filters
• Conveyor system without touching to side carrier wheels at dryni g section
• Valve system for energy saving when there is no glass in drying unit
• Stopping of brushes and water pumps when there is no glass in the washing unit or conveyor wheels are stopped
• Drying unit with noise isolation and fan cabinet with heat control
• Individual spindles for each brushes
• Stainless water pumps
• Inlet and outlet filters for water pumps

• Completely stainless washing cabinet
• 200mm diametered brushes
• Sand filter with 25 micron accuracy
• Tilting table
• Purification system
• Pre-washing unit
• Tilting table at the end of press unit
