BEST MAKINA ADDED NEW PRODUCT TO ITS CUSTOM MADE PROJECTS

BEST MAKINA, proudly releases latest product in order to produce special applications for small size insulated glass panes where the sizes get bigger and bigger for architectural appliances.

As a sub-version of BWPG, automatic gas filling insulated glass production line with servo motor driven panel press, BWPG-M series has been produced and delivered to Germany based ADORO-HAUSTUREN GmbH company’s  Zagreb/Crotia factory.

BWPG-M has general component and design criteria’s of BEST MAKINA. Additionally, BWPG-M can process 150mmx250mm size panes with smaller drive wheels and small diameter brushes. Standard glass thickness is 3-19mm , optionally can be 60mm for safety glass, or marine applications

                Standard unit thickness is 90mm , optionally can be increased to 120mm for triple or quadruple glass panes. As other BEST MAKINA IG line versions, BWPG-M can produce triple and stepped units. Triple stepped and quadruple glass production is sold optionally.

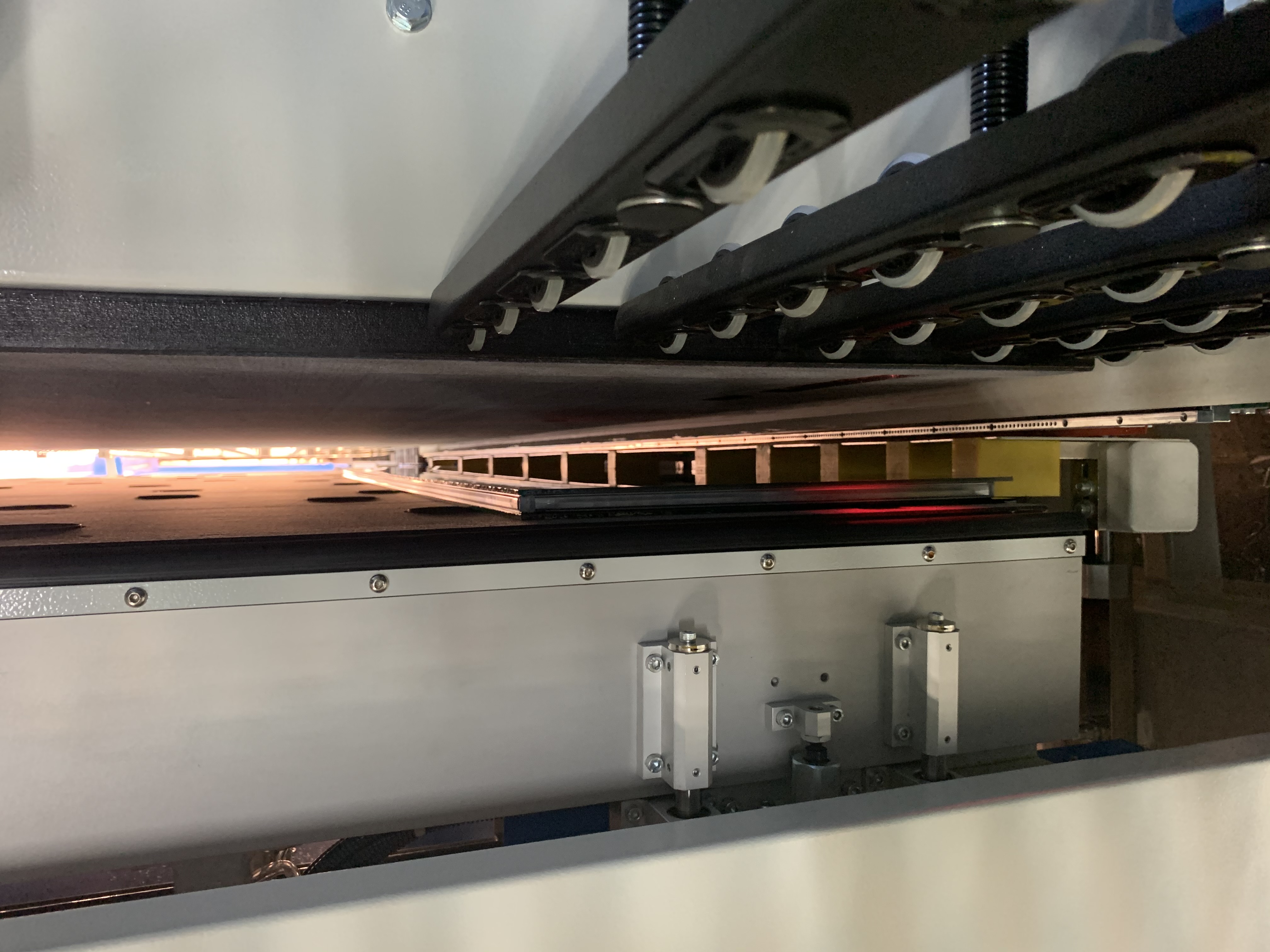

Automatic gas filling press can process up to 1700x3000mm and variable gas injection nozzle positioning allows to combine various spacer widths and glass thickness combinations.

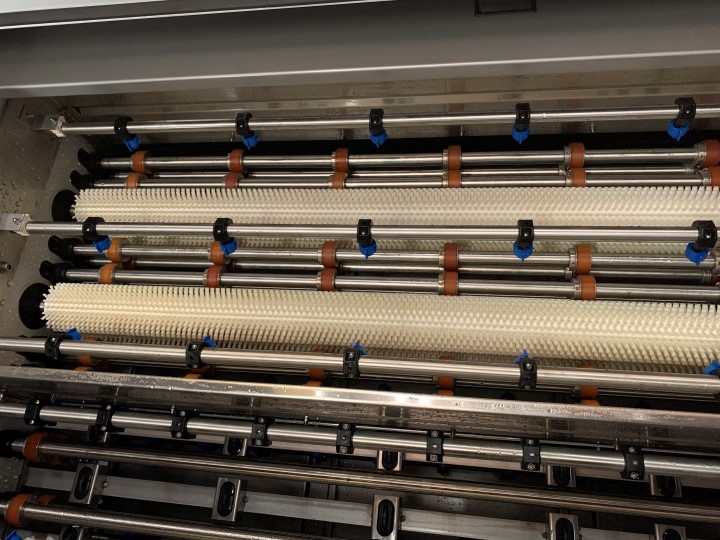

Brush bristle thickness can vary between 0.10mm to 0.30mm depending on final user’s application.

BWPG-M can be coupled with BLS-S series automatic two component extruders.

General Specs of Machine

• 3-19mm glass thickness processing (optionally 40-60mm)
• 200kg/m payload
• 90mm unit thickness (120mm optionally)
• Double, triple, stepped glass production is standard; triple stepped and and quadruple glass production is optional
• Unlimited spacer width range due to variable gas nozzle positioning
• Active gas consumption control
• Multiple gas line connection(optional)
• Previous (arriser, edge deletion etc) or following (sealing robot, stacker etc) machines can be connected mechanically and they can exchange signals
• Transfer machines can be integrated for exchanging semi-products and line can be built on I, T or L shape layout
• Quality control scanners can be installed and datas can be exchanged on-line

BEST MAKİNA supplies fast and solution based after sales services;

• 2 years of complete warranty including electronics and mechanics (independent from working hours)
• Cost free on-line service during life time of machine
• Spare part shipment in same day after ordering
