ASC 3000
AUTOMATIC SPACER BAR CUTTING MACHINE
BEST FILLER
DESICCANT FILLING MACHINE
BWPE

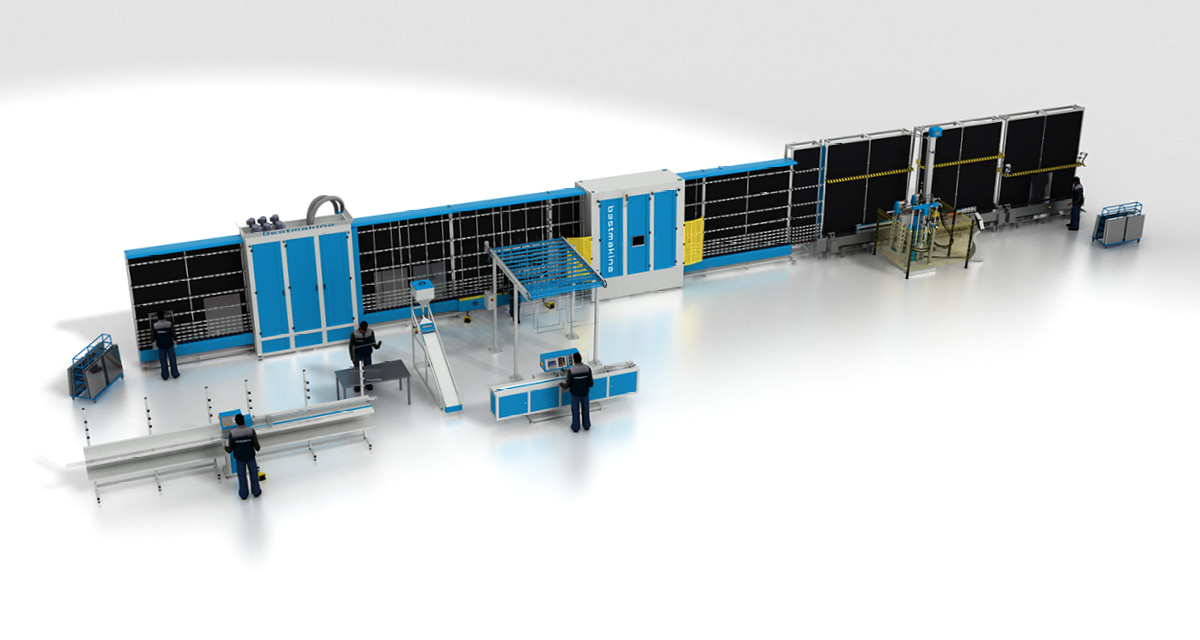

AUTOMATIC GLASS WASHING AND COMBINING LINE WITH PNEUMATIC PANEL PRESS
BEST RACK
SPACER BAR RACK
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
BLSS
AUTOMATIC TWO COMPONENT EXTRUDER WITH SERVO MOTOR DRIVEN PUMP
| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPE | Automatic Glass Washing and Combinig Line With Pneumatic Panel Press | 1500 lt/min | Min 6 - Maks 8 | 41 kW | 3x125 A | Production Capacity | 800 pcs |
| 2 | BLS LOGICSEAL | Automatic Two Component Extruder With Servo Motor Driven Pump | 200 lt/min | Min 6 - Maks 8 | 46 kW | 3x80 A | Minimum Employee Number | 6 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 7 |
| 4 | ASC 3000 | Automatic Spacer Bar Cutting Machine | 5 lt/min | Min 6 - Maks 8 | 1,7 kW | 3x16 A | Total Area for Project | 255 m² |
| 5 | BEST FILLER | Desiccant Filling Machine | 50 lt/min | Min 6 - Maks 8 | 1 kW | 1x6 A | Total Power Consumption | 90 kW |
| 6 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | Total Air Consumption | 2000 lt/min | |
