BASB 2500
AUTOMATIC SPACER BAR BENDING MACHINE
BADF 2500
AUTOMATIC DESICCANT FILLING MACHINE
BWPG

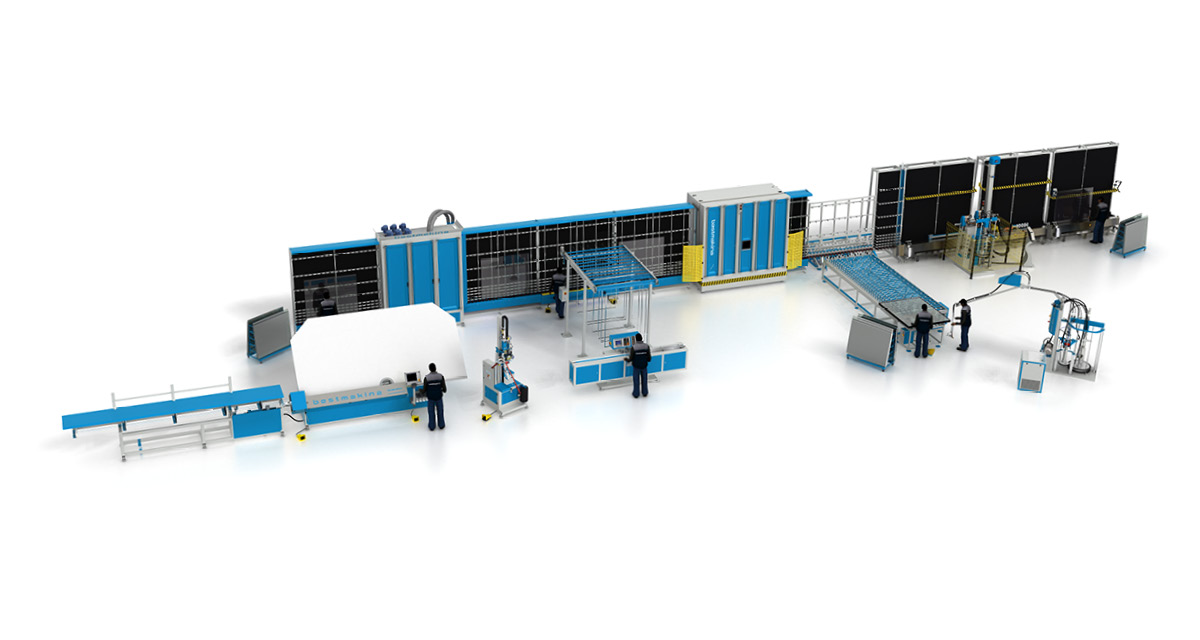

AUTOMATIC WASHING AND COMBINING LINE WITH SERVO MOTOR DRIVEN -GAS FILLING PRESS
BEST RACK
SPACER BAR RACK
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
TS 200 E
ROTARY TABLE FOR END OF CONVEYOR TABLE
BLSS
AUTOMATIC TWO COMPONENT EXTRUDER WITH SERVO MOTOR DRIVEN PUMP
BEST COOLER
FREEZER
2200 BEST COLD XL
TWO COMPONENT HYDRAULIC EXTRUSION PUMP WITH TELESCOPIC ARM

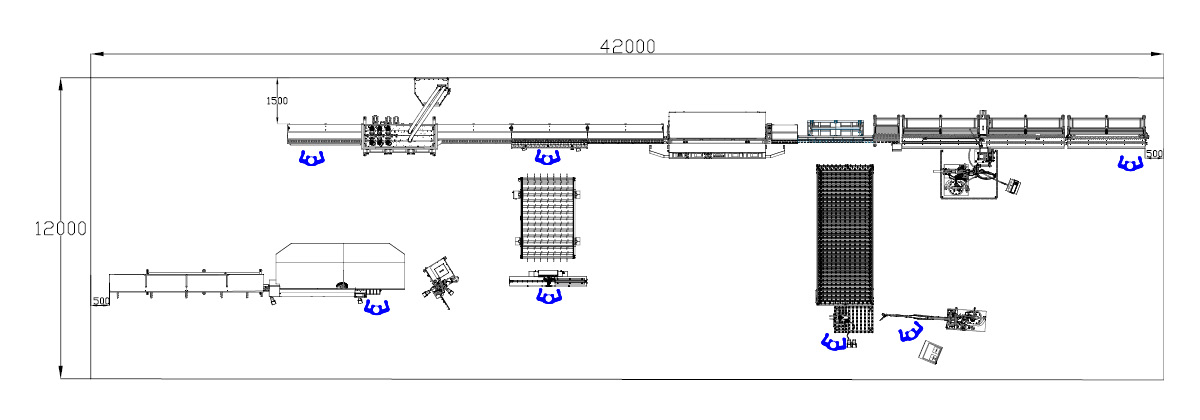

| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Detail | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPG | Automatic Washing and Combining Line With Servo Motor Driven - Gas Filling Press | 880 lt/min | Min 6 - Maks 8 | 50 kW | 3x125 A | Production Capacity | 900 pcs |
| 2 | BLS LOGICSEAL | Automatic Two Component Extruder With Servo Motor Driven Pump | 200 lt/min | Min 6 - Maks 8 | 46 kW | 3x80 A | Minimum Employee Number | 6 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 7 |
| 4 | 2200 BEST COLD | Two Component Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Total Area for Project | 435 m² |
| 5 | TS 200 - E | Rotary Table for end of Conveyor Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 3x16 A | Total Electrical Consumption | 107 kW |
| 6 | BASB 2500 | Automatic Spacer Bar Bending Machine | 30 lt/min | Min 6 - Maks 8 | 5 kW | 3x32 A | Total Air Consumption | 1520 lt/min |
| 7 | BADF 2500 | Automatic Desiccant Filling Machine | 200 lt/min | Min 6 - Maks 8 | 0,75 kW | |||
| 8 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | |||
| 9 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | |||
