BASB 2500
AUTOMATIC SPACER BAR BENDING MACHINE
BADF 2500
AUTOMATIC DESICCANT FILLING MACHINE
BWPL

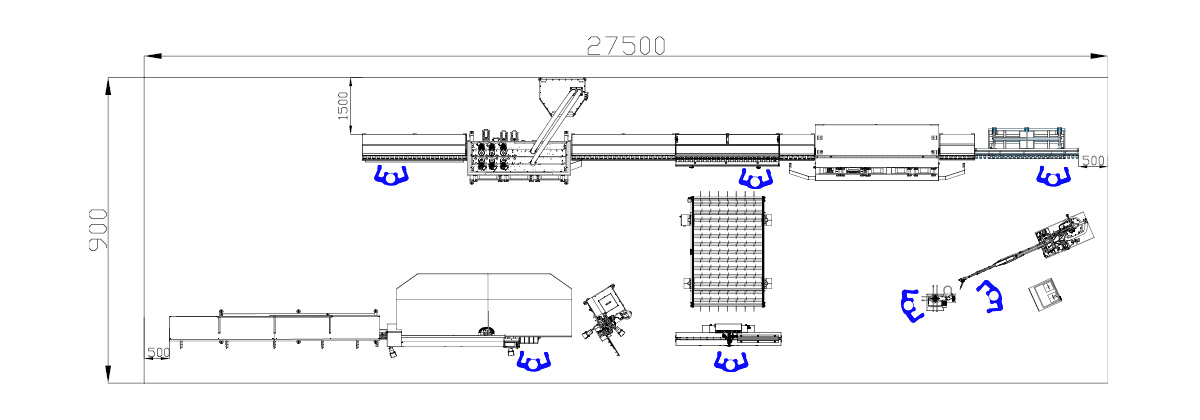

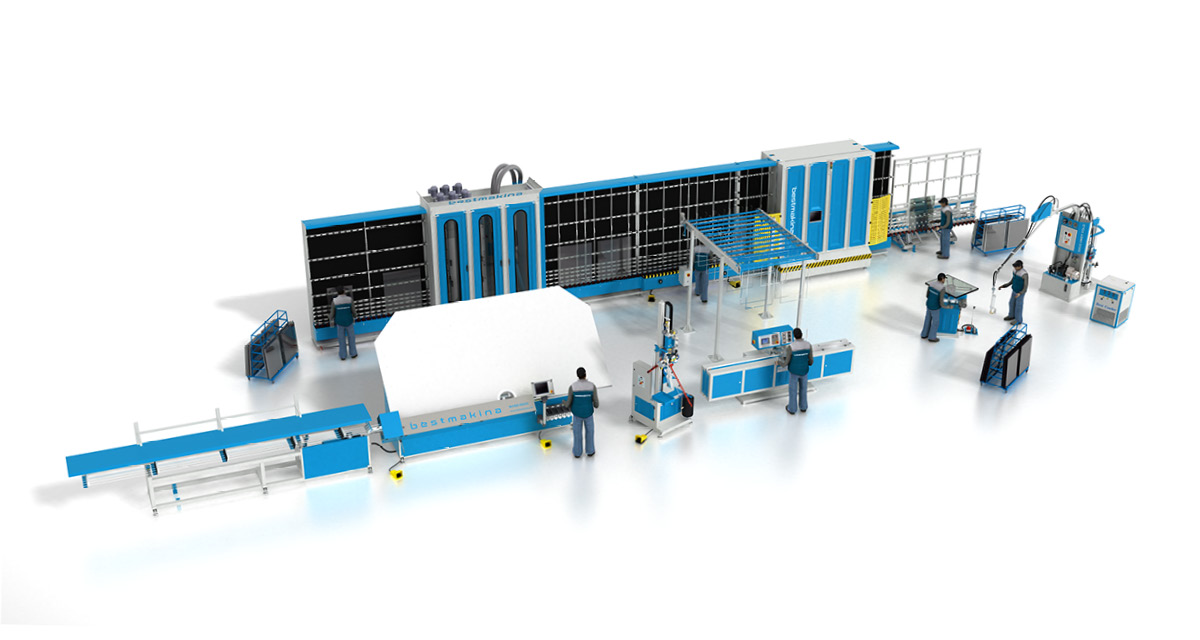

AUTOMATIC WASHING AND COMBINING LINE WITH SERVO PANEL PRESS
BEST RACK
SPACER BAR RACK
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
TS 200 A
HEIGHT AND SPEED ADJUSTABLE ROTARY TABLE
BEST COOLER
FREEZER
2200 BEST COLD XL
TWO COMPONENT HYDRAULIC EXTRUSION PUMP WITH TELESCOPIC ARM
| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPL - A | Automatic Washing and Combining Line With Servo Panel Press | 880 lt/min | Min 6 - Maks 8 | 50 kW | 3x125 A | Production Capacity | 1000 pcs |
| 2 | 2200 BEST COLD | Two Component Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Minimum Employee Number | 5 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 7 |
| 4 | BASB 2500 | Automatic Spacer Bar Bending Machine | 30 lt/min | Min 6 - Maks 8 | 5 kW | 3x32 A | Total Area for Project | 210 m² |
| 5 | BADF 2500 | Automatic Desiccant Filling Machine | 200 lt/min | Min 6 - Maks 8 | 0,75 kW | Total Electrical Consumption | 64 kW | |
| 6 | TS 200 - A | Height and Speed Adjustable Rotary Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 1x10 A | Total Air Consumption | 1320 lt/dk |
| 7 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | |||
| 8 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | |||
