ASC 3000
AUTOMATIC SPACER BAR CUTTING MACHINE
BEST FILLER
DESICCANT FILLING MACHINE

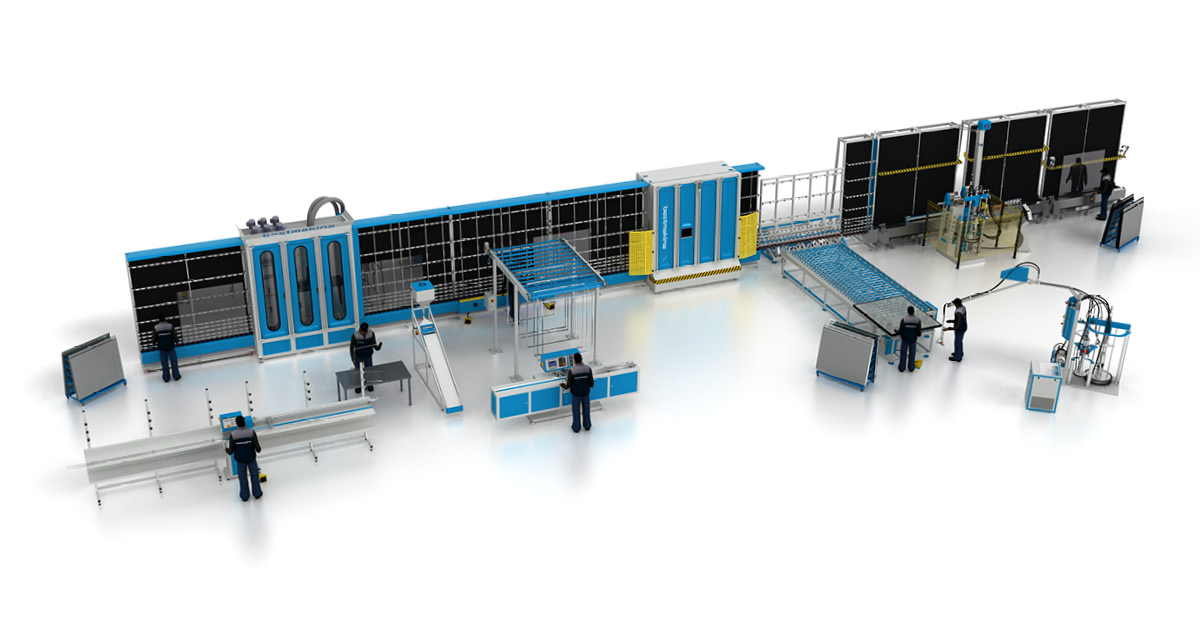

BWPL
AUTOMATIC WASHING AND COMBINING LINE WITH SERVO PANEL PRESS
BEST RACK
SPACER BAR RACK
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
TS 200 A
HEIGHT AND SPEED ADJUSTABLE ROTARY TABLE
BEST COOLER
FREEZER
2200 BEST COLD XL
TWO COMPONENT HYDRAULIC EXTRUSION PUMP WITH TELESCOPIC ARM
| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPL | Automatic Washing and Combining Line With Servo Panel Press | 880 lt/min | Min 6 - Maks 8 | 50 kW | 3x125 A | Production Capacity | 1000 pcs |
| 2 | 2200 BEST COLD | Two Component Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Minimum Employee Number | 5 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 8 |

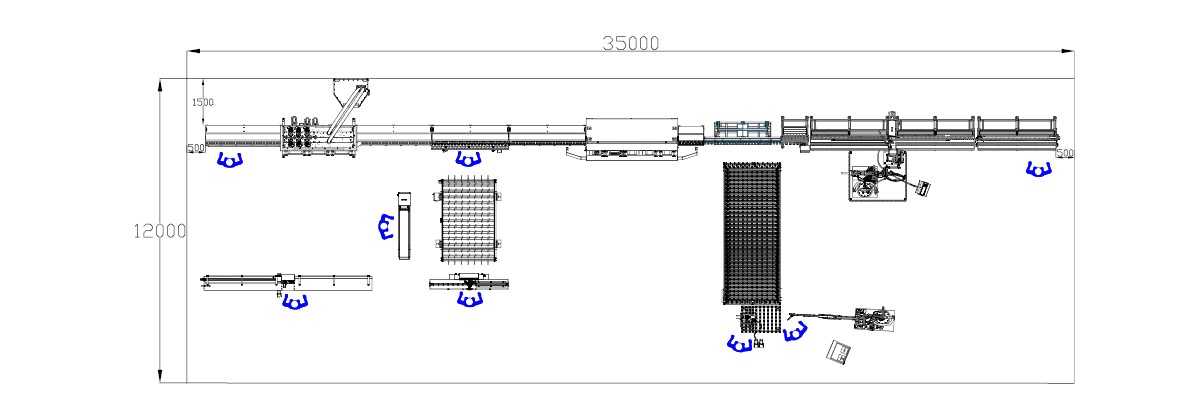

| 4 | ASC 3000 | Automatic Spacer Bar Cutting Machine | 5 lt/min | Min 6 - Maks 8 | 1.7 kW | 3x16 A | Total Area for Project | 170 m² |
| 5 | BEST FILLER | Desiccant Filling Machine | 50 lt/min | Min 6 - Maks 8 | 1 kW | 1x6 A | Total Electrical Consumption | 61 kW |
| 6 | TS 200 - A | Height and Speed Adjustable Rotary Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 1x10 A | Total Air Consumption | 1300 lt/min |
| 7 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | |||
| 8 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x16 A | |||
