BASB 2500
AUTOMATIC SPACER BAR BENDING MACHINE
BADF 2500
AUTOMATIC DESICCANT FILLING MACHINE
BWPL XL
AUTOMATIC WASHING AND COMBINING LINE WITH SERVO MOTOR DRIVEN FOR OVERSIZE UNITS
BEST RACK
SPACER BAR RACK
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
TS 200 E
ROTARY TABLE FOR END OF CONVEYOR TABLE
BEST COOLER
FREEZER
2200 BEST COLD
TWO COMPONENT HYDRAULIC EXTRUSION PUMP

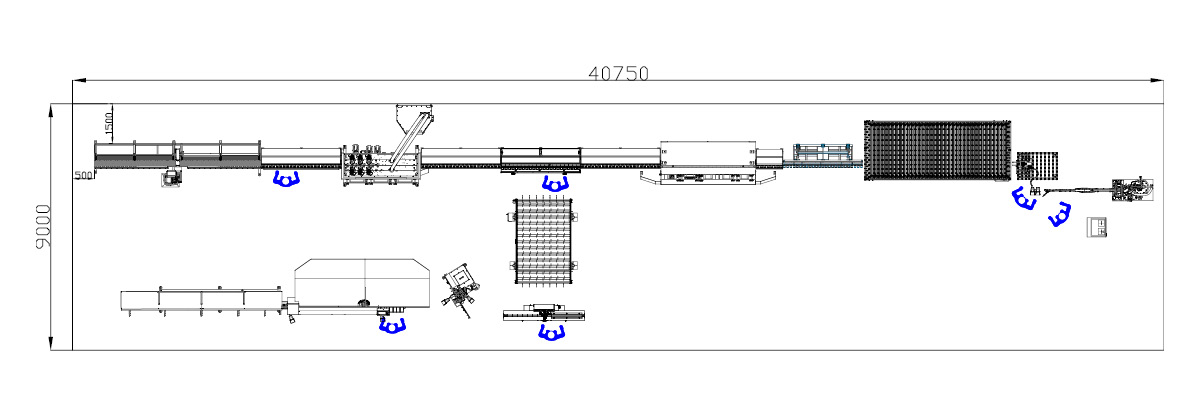

| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPL XL | Automatic Washing and Combining Line With Servo Motor Driven For Oversize Units | 900 lt/min | Min 6 - Maks 8 | 49 kW | 3x125 A | Production Capacity | 1200 pcs |
| 2 | 2200 BEST COLD | Two Components Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Minimum Employee Number | 5 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 6 |
| 4 | BASB 2500 | Automatic Spacer Bar Bending Machine | 30 lt/min | Min 6 - Maks 8 | 5 kW | 3x32 A | Total Area for Project | 315 m² |
| 5 | BADF 2500 | Automatic Desiccant Filling Machine | 200 lt/min | Min 6 - Maks 8 | 0,75 kW | Total Power Consumption | 71 kW | |
| 6 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | Total Air Consumption | 1340 lt/min | |
| 7 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | |||
| 8 | TS 200 - E | Rotary Table for end of Conveyor Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 3x16 A | ||
