BASB 2500
AUTOMATIC SPACER BAR BENDING MACHINE
BADF 2500
AUTOMATIC DESICCANT FILLING MACHINE

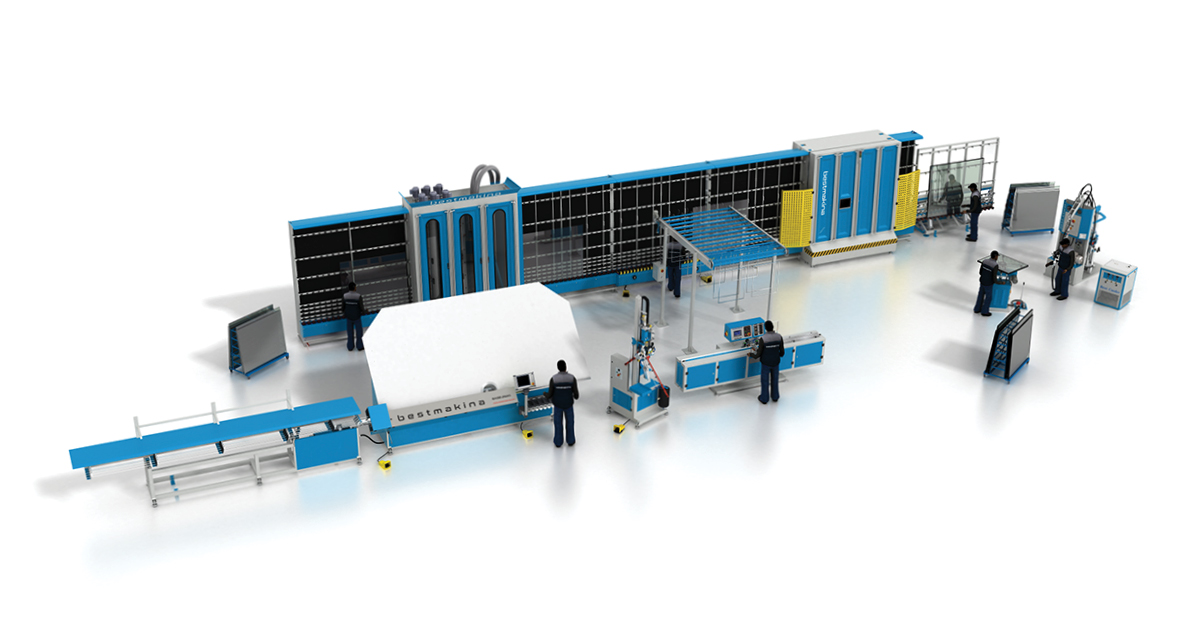

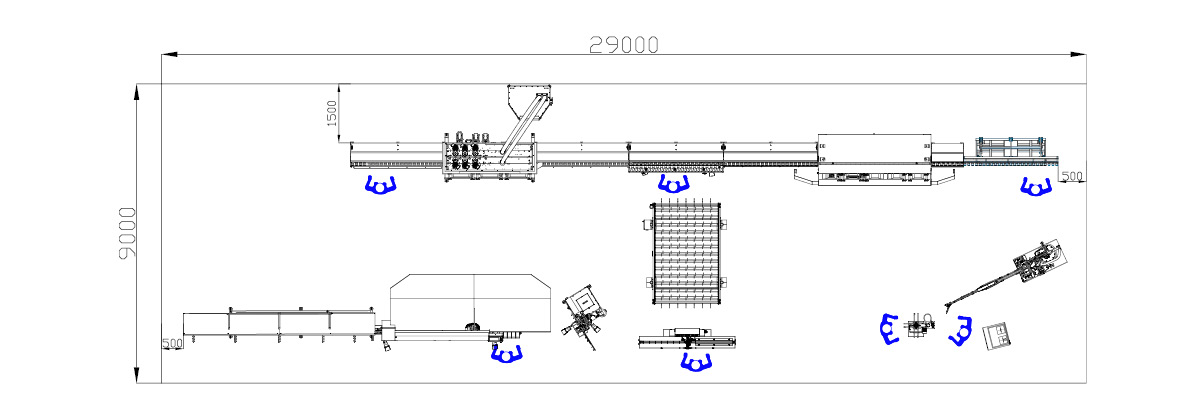

BWPL XL
АВТОМАТИЗИРОВАННАЯ МОЮЩАЯ-ПРЕССУЮЩАЯ ЛИНИЯ ДЛЯ БОЛЬШИХ СТЕКОЛ СТАНДАРТНЫХ РАЗМЕРОВ
BEST RACK
AUTOMATIC WASHING AND COMBINING LINE WITH SERVO MOTOR DRIVEN FOR OVERSIZE UNITS
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
TS 200 A
HEIGHT AND SPEED ADJUSTABLE ROTARY TABLE
BEST COOLER
FREEZER
2200 BEST COLD
TWO COMPONENT HYDRAULIC EXTRUSION PUMP
| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPL XL | Automatic Washing and Combining Line With Servo Motor Driven For Oversize Units | 900 lt/min | Min 6 - Maks 8 | 49 kW | 3x125 A | Production Capacity | 1200 pcs |
| 2 | 2200 BEST COLD | Two Component Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Minimum Employee Number | 5 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 6 |
| 4 | BASB 2500 | Automatic Spacer Bar Bending Machine | 30 lt/min | Min 6 - Maks 8 | 5 kW | 3x32 A | Total Area for Project | 245 m² |
| 5 | BADF 2500 | Automatic Desiccant Filling Machine | 200 lt/min | Min 6 - Maks 8 | 0,75 kW | Total Power Consumption | 70 kW | |
| 6 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | Total Air Consumption | 1340 lt/min | |
| 7 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | |||
| 8 | TS 200 - A | Height and Speed Adjustable Rotary Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 1x10 A | ||
