BLSS
AUTOMATIC TWO COMPONENT EXTRUDER WITH SERVO MOTOR DRIVEN PUMP
TS 200 E
ROTARY TABLE FOR END OF CONVEYOR TABLE
BEST COOLER
FREEZER
BASB 2500
AUTOMATIC SPACER BAR BENDING MACHINE
BADF 2500
AUTOMATIC DESICCANT FILLING MACHINE
BWPL

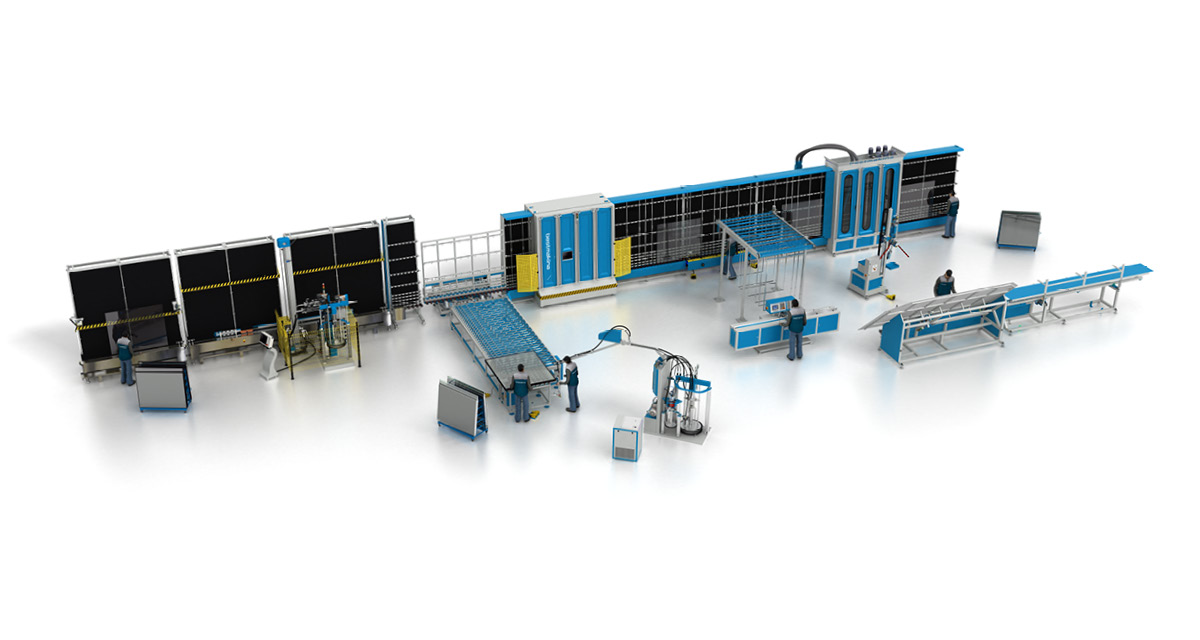

AUTOMATIC WASHING AND COMBINING LINE WITH SERVO PANEL PRESS
BEST RACK
SPACER BAR RACK
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
2200 BEST COLD XL
TWO COMPONENT HYDRAULIC EXTRUSION PUMP WITH TELESCOPIC ARM
| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWPL | Automatic Washing and Combining Line With Servo Panel Press | 900 lt/min | Min 6 - Maks 8 | 49 kW | 3x125 A | Production Capacity | 1000 pcs |
| 2 | BLS LOGICSEAL | Automatic Two Component Extruder With Servo Motor Driven Pump | 200 lt/min | Min 6 - Maks 8 | 46 kW | 3x80 A | Minimum Employee Number | 6 |
| 3 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Maximum Employee Number | 7 |
| 4 | 2200 BEST COLD | Two Component Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Total Area for Project | 425 m² |
| 5 | TS 200 - E | Rotary Table for end of Conveyor Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 3x16 A | Total Electrical Consumption | 103 kW |
| 6 | BASB 2500 | Automatic Space Bar Bending Machine | 30 lt/min | Min 6 - Maks 8 | 5 kW | 3x32 A | Total Air Consumption | 1520 lt/min |
| 7 | BADF 2500 | Automatic Desiccant Filling Machine | 200 lt/min | Min 6 - Maks 8 | 0,75 kW | |||
| 8 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | |||
| 9 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | |||
