ASC 3000
AUTOMATIC SPACER BAR CUTTING MACHINE
BEST RACK
SPACER BAR RACK
BEST FILLER
DESICCANT FILLING MACHINE
BWR

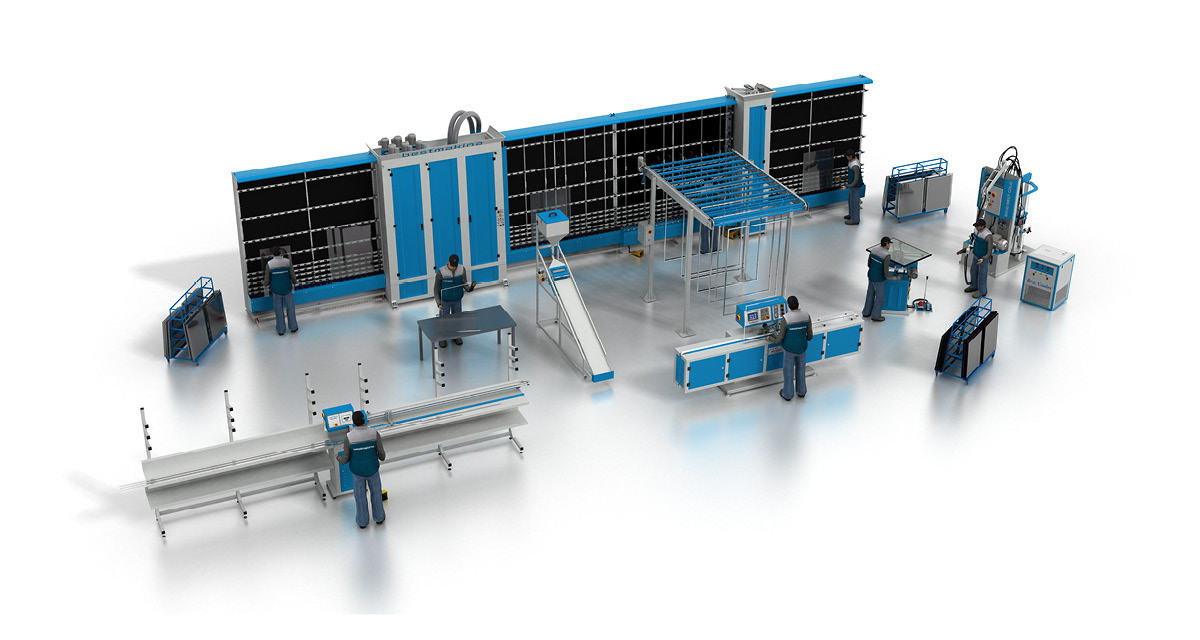

GLASS WASHING AND COMBINING LINE WITH ROLLER PRESS
7000 PRIMA LOGIC
HORIZONTAL BUTYL EXTRUDER
TS 200 A
HEIGHT AND SPEED ADJUSTABLE ROTARY TABLE
BEST COOLER
FREEZER
2200 BEST COLD
TWO COMPONENT HYDRAULIC EXTRUSION PUMP
| No | Machine Code | Machine Name | Air Consumption | Air Pressure | Power Consumption | Electrical Fuse | Project Details | |
|---|---|---|---|---|---|---|---|---|
| 1 | BWR | Glass Washing and Combining Line With Roller Press | 105 lt/min | Min 6 - Maks 8 | 40 kW | 3x100 A | Production Capacity | 500 pcs |
| 2 | 7000 PRIMA LOGIC | Horizontal Butyl Extruder | 10 lt/min | Min 6 - Maks 8 | 7 kW | 3x32 A | Minimum Employee Number | 5 |
| 3 | 2200 BEST COLD | Two Component Hydraulic Extrusion Pump | 100 lt/min | Min 6 - Maks 8 | 3,8 kW | 3x16 A | Maximum Employee Number | 8 |
| 4 | ASC 3000 | Automatic Spacer Bar Cutting Machine | 5 lt/min | Min 6 - Maks 8 | 1,7 kW | 3x16 A | Total Area for Project | 155 m² |
| 5 | BEST FILLER | Dessiccant Filling Machine | 50 lt/min | Min 6 - Maks 8 | 1 kW | 1x6 A | Total Electrical Consumption | 50 kW |
| 6 | TS 200 - A | Height and Speed Adjustable Rotary Table | 30 lt/min | Min 6 - Maks 8 | 0,37 kW | 1x10 A | Total Air Consumption | 515 lt/min |
| 7 | BEST COOLER | Freezer | Min 6 - Maks 8 | 1 kW | 1x16 A | |||
| 8 | BEST RACK | Spacer Bar Rack | Min 6 - Maks 8 | 0,75 kW | 1x10 A | |||
